Specified powder grades for your manufacturing process

Ultrafine copper powder

Ultrafine copper powders UF2, UF3 and UF5 with defined particle sizes. We can assist you in selecting and sourcing products that meet your technical requirements.

Powder grades & specifications

Ultra-fine copper powders for industrial applications

NMD Metalpowders offers ultra-fine copper powders in the UF2, UF3 and UF5 grades. The powders differ in terms of their defined particle size distributions, allowing for a targeted selection to meet different processing requirements.

Copper is an important material for electronic and industrial applications due to its high electrical and thermal conductivity. The suitability of a particular powder grade depends not only on particle size but also on purity, particle shape, surface condition and the process used.

We can help you narrow down these requirements for your procurement process.

Our range of ultra-fine copper powders

We are your reliable source for ultra-fine copper powders such as:

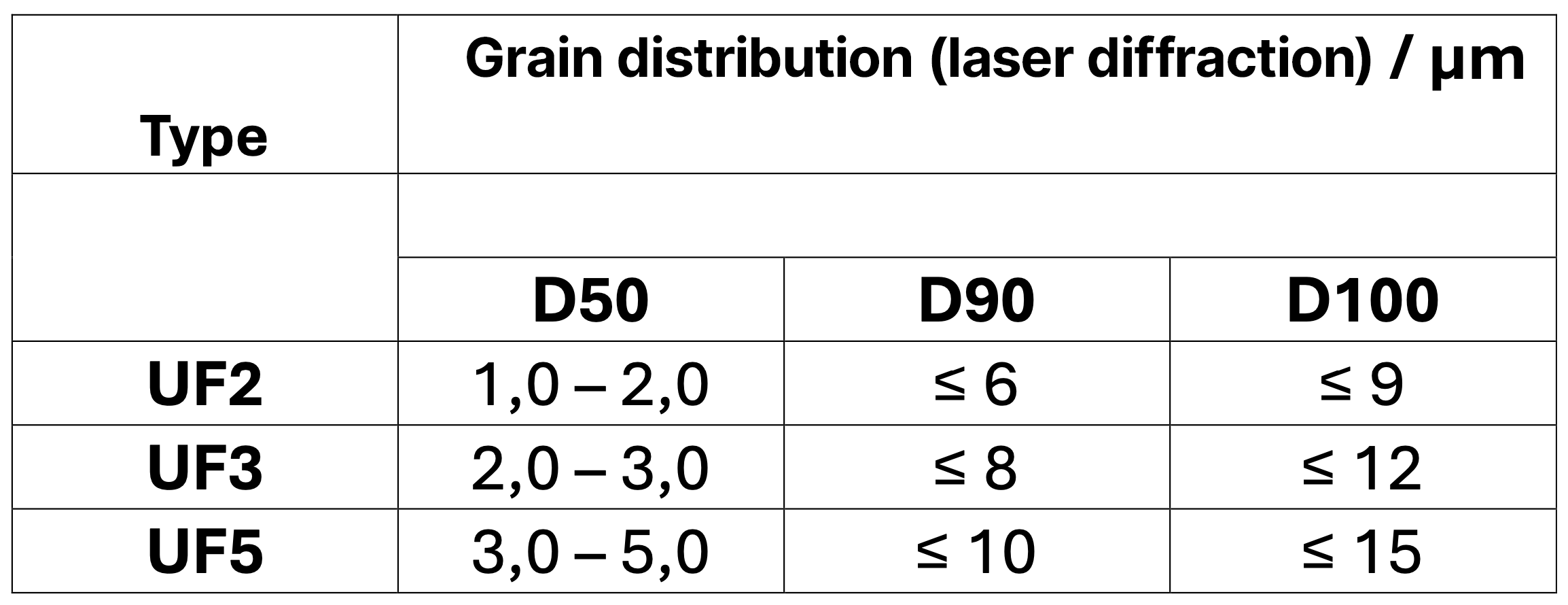

Ultrafine copper powder UF2: D50: 1.0–2.0 µm, D90: ≤ 6 µm, D100: ≤ 9 µm. Of the three variants, UF2 has the smallest D50 range.
Ultra-fine copper powder UF3: D50: 2.0–3.0 µm, D90: ≤ 8 µm, D100: ≤ 12 µm. In terms of the specified particle sizes, UF3 lies between UF2 and UF5.
Ultra-fine copper powder UF5: D50: 3.0–5.0 µm, D90: ≤ 10 µm, D100: ≤ 15 µm. Within this product range, UF5 has the larger particle size parameters.

The D50 value describes the median of the particle size distribution, not the maximum particle size. When making a selection, therefore, D90 and D100, as well as other powder properties, should also be taken into account. A finer grain size does not automatically mean greater manufacturing precision or better workability.

Further selection criteria are explained in our Guide to the Selection and Procurement of Copper Powder.

Applications of ultrafine copper powders

Electronics and conductive pastes

Fine copper powders are used as the metallic component in conductive pastes and adhesives. In the Semiconductors and electronics Factors such as particle size, purity and the distribution of the powder within the respective formulation are relevant. The electrical conductivity of the finished system also depends on its composition and processing.

Additive manufacturing and 3D printing

For the additive manufacturing The powder quality must be tailored to the specific process. In the case of ultrafine copper powders, particular attention must be paid to powder application, flow behaviour and potential agglomeration. Whether UF2, UF3 or UF5 is suitable depends on the production system and the intended process conditions.

Conductive coatings and functional layers

Copper powders can be used as a conductive component in coatings and shielding materials. The desired film thickness, the particle size distribution and the binder system used are key factors in the selection process. The properties of the finished coating result from the interaction between the powder, the formulation and the coating process.

Why NMD Metalpowders?

Selecting the right grade of powder for the job

Selecting the appropriate particle size is an important starting point for material selection. Equally important are the chemical specifications, processing requirements and the necessary documentation. NMD Metalpowders helps you to align these criteria prior to procurement, thereby avoiding unnecessary sampling or incorrect purchases.

Personalised advice and professional procurement

With many years’ experience in the metal powder industry and an international network of suppliers, NMD Metalpowders supports you with your material procurement. Together, we will determine the required powder quality, quantity and documentation for development, sampling or production runs.

About our tailor-made powder solutions We also assess requirements that go beyond the options listed. You will receive personalised support in selecting and tailoring suitable procurement options.

Nadine Rajner

Your contact person

The advantages of professional powder coating by NMD:

Speed: Speed up your production processes with our fast powder procurement.
Optimisation: Achieve higher quality at lower cost with our customised powder selection.
Anonymity: Protect your intellectual property and strengthen your market position.
Savings: Avoid costly bad purchases. Maximise your profits with our expertise.

Machines run smoothly

because you have the right powder.

Consistently high quality

for your products because you can rely on our global supply chains.

Serenity and security

in your work, because you have us at your side as your partner.

Powder selection

Can't find your copper powder?

Can’t find the particle size or powder grade you’re looking for? Please let us know the application, specifications and quantity. We’ll look into sourcing the right product for you.
